ASUS A7J
SKU: 03073
Schematic diagrams and BoardView for Laptop ASUS A7J
- Manufacturer: ASUS
- CPU: Intel Socket 479
- GPU: ATI M56
- RAM: DDR2
- SKU: 03073
- Unit: pcs
- Size: 1.35Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

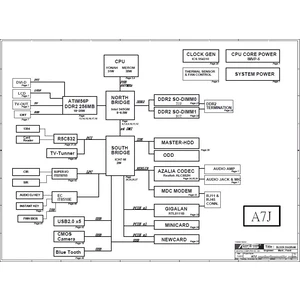

Schematic diagrams for Laptop ASUS A7J
Project: ASUS A7J Rev: 2.0
Schematic diagrams for motherboard marked A7J MAIN BOARD
Format: PDF
Total pages: 66

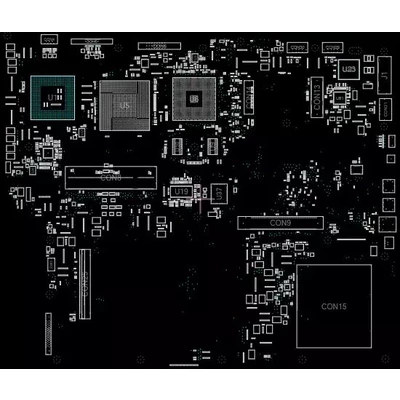

+ BoardView Rev: 2.0, 2.2 ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
Similar products
ASUS F3JR
4.50eur 3.75eur

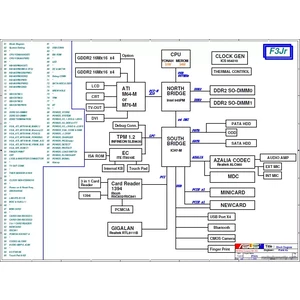

Schematic diagrams for Laptop ASUS F3JR Project: ASUS F3Jr
