ASUS A7T A7M
SKU: 03076
Schematic diagrams for Laptops ASUS A7T / ASUS A7M Project: ASUS A7T
- Manufacturer: ASUS
- CPU: AMD Socket 638
- GPU: Nvidia G73M / UMA
- RAM: DDR2
- SKU: 03076
- Unit: pcs
- Size: 2.38Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptops ASUS A7T / ASUS A7M
Project: ASUS A7T Rev: 2.0

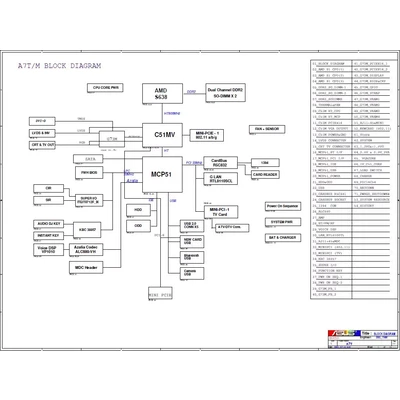

Schematic diagrams for motherboard marked A7T MAIN BOARD
Format: PDF
Total pages: 73

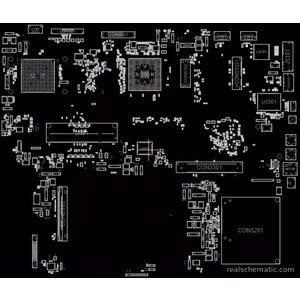

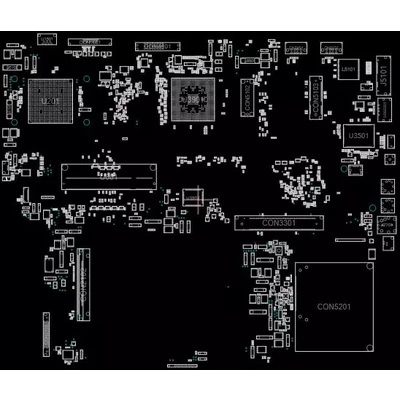

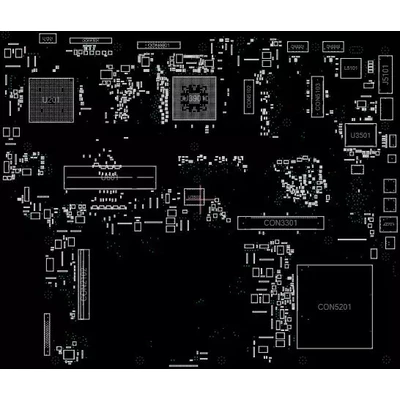

+ BoardView Rev: 2.0, 3.0 ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
