ASUS UX30

Schematic diagrams for Laptop ASUS UX30

Project: UX30   Rev: 2.0

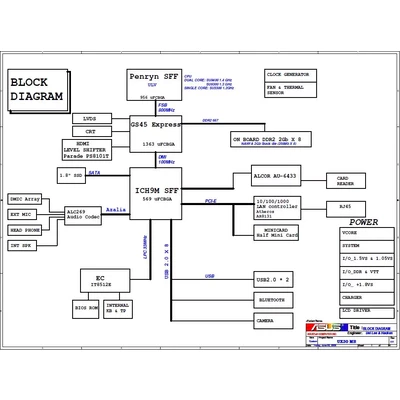

Schematic diagrams for motherboard marked UX30 MAIN BOARD REV 2.0, REV 2.2, REV 2.3

+ all Sub-boards schematic diagrams

Format: PDF

Total pages: 103

+ BoardView   Rev: 2.0, 2.2, 2.3

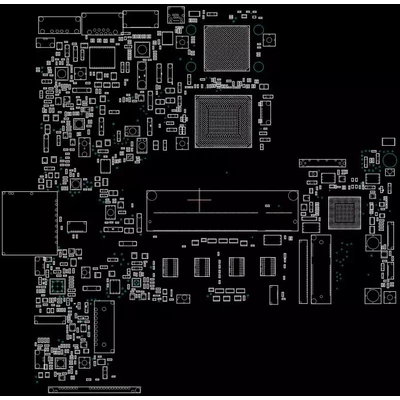

Format: FZ   ( shows the values / labeling of the components )

The program for viewing is attached.

BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
