Sony Vaio VGN-FZ series PCB: MS91

4.8/4
Compare
SKU: 10022
Schematic diagrams for Laptops Sony Vaio VGN-FZ series Project: Foxconn MS91
  • Manufacturer: Foxconn
  • CPU: Intel Socket 478
  • GPU: Nvidia G86M / G86S
  • RAM: DDR2
  • SKU: 10022
  • Unit: pcs
  • Size: 1.06Mb
  • Availability: In stock
  • Tags: VAIO, VGN-FZ, Foxconn, Sony, MBX-165
4.50eur
3.75eur
Schematic diagrams for Laptops Sony Vaio VGN-FZ series

Project: Foxconn MS91

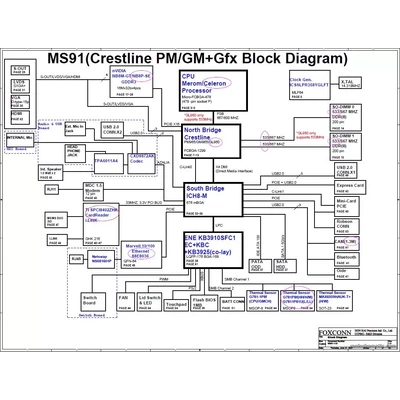

Schematic diagrams for motherboard marked MBX-165 MS91 Main Board

Format: PDF

+ Sub-boards schematic diagrams

Total pages: 76
