Schematic diagrams for Laptops Acer Aspire 4745G, 4820G, 4820T, 4820TG, 4820TZ, 4820TZG Project: Quanta ZQ1
- Manufacturer: Quanta
- SKU: 00184
- Unit: pcs
- Size: 1.55Mb
- Availability: In stock
- Tags:
4.50eur
Schematic diagrams for Laptops Acer Aspire 4745 / 4745G / 4820 / 4820G / 4820T / 4820TG / 4820TZ / 4820TZG
Project: Quanta ZQ1

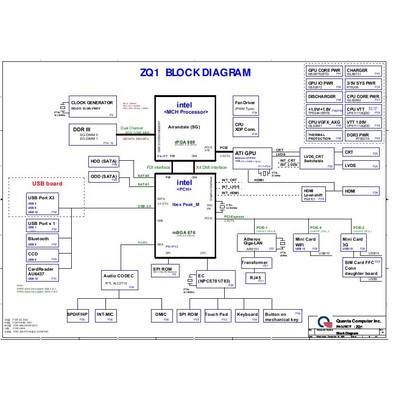

Schematic diagrams for PCB with markings DA0ZQ1MB8D0, DA0ZQ1MB8F0 and similar
Format: PDF
Total pages: 45
+ Sub-boards schematic diagrams

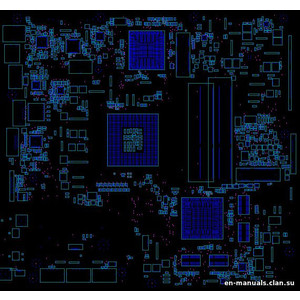

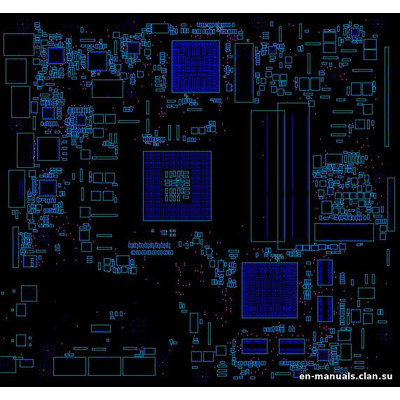

+ BoardView
The program for viewing is attached.
