Schematic diagram for Laptops Fujitsu Amilo Pi 1505 / Advent 7113 / Prestigio Nobile 1522e Project: Uniwill L50II0
- Manufacturer: Uniwill
- CPU: Intel Socket 479
- VGA: UMA
- RAM: DDR2
- SKU: 14009
- Unit: pcs
- Size: 684.4Kb
- Availability: In stock
- Tags:
3.75eur
Schematic diagram for Laptops Fujitsu Amilo Pi 1505 / Pi1505 & Advent 7113 & Prestigio Nobile 1522e
Project: Uniwill L50II0 Rev: C
Schematic diagram for motherboard marked L50II0 37GL50200-C0 REV: C
Format: PDF
Total pages: 33
Similar products
ASUS X51R X51Rg X51Rv T12R T12Rg
Schematic diagrams for Laptops ASUS X51R / X51Rg / X51Rv Project: ASUS X51R
4.50eur
- Availability:In stock

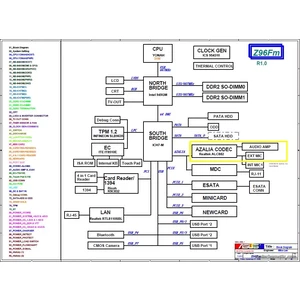

ASUS Z96F Z96FM series
