Schematic diagrams for Laptops Acer Aspire One D255, D260 / AOHAPPY Project: LA-6221P
- Manufacturer: Compal
- SKU: 00203
- Unit: pcs
- Size: 1.32Mb
- Availability: In stock
- Tags:
4.50eur
Schematic diagrams for Laptops Acer Aspire One D255 / Aspire One D260 / Acer AOHAPPY
Project: Compal LA-6221P Rev: 1.0

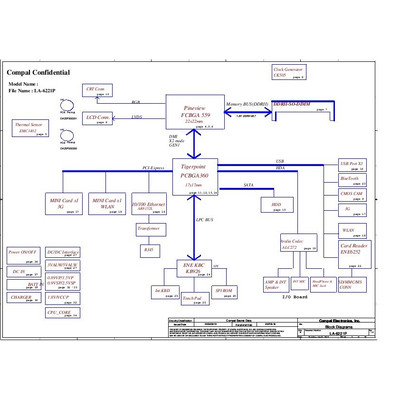

Schematic diagrams for PCB marked PAV70 LA-6221P
Format: PDF
Total pages: 39

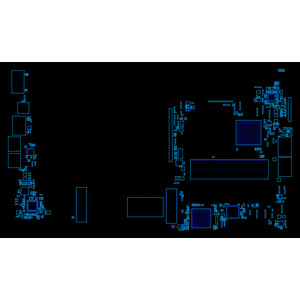

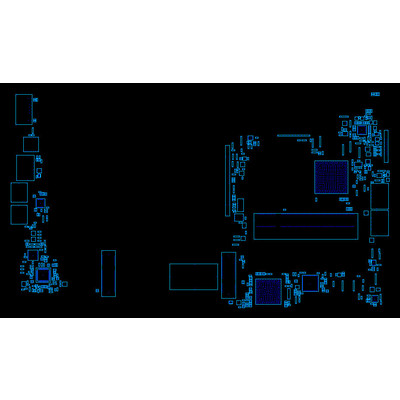

+ BoardView Rev: 1.0
The program for viewing is attached.
