Schematic diagrams for Laptop Samsung NP-R780 Project: ' Bremen-Q '
- Manufacturer: Samsung
- SKU: 07034
- Unit: pcs
- Size: 1.90Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

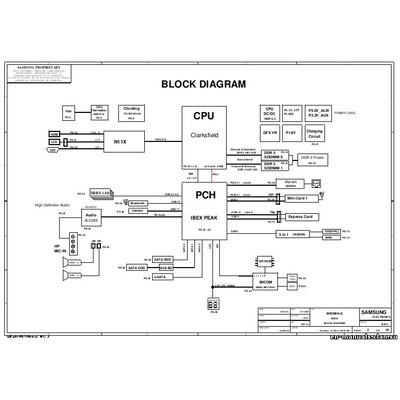

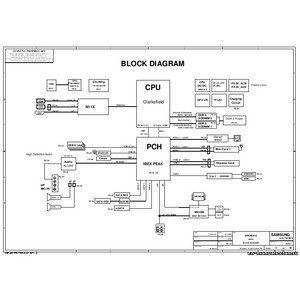

Schematic diagrams for Laptop Samsung NP-R780
Project: ' Bremen-Q ' Rev: 1.0
Schematic diagrams for PCB with marking BA41-01235A / BA41-01236A / BA41-01237A
Format: PDF
Total pages: 56

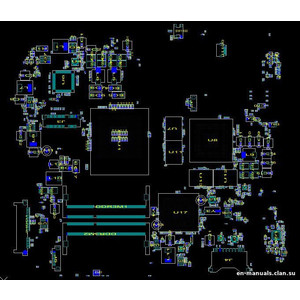

+ BoardView
The program for viewing is attached.
