Dell Inspiron N5030 (UMA)
SKU: 05159
Schematic diagrams for Laptop Dell Inspiron N5030 Project: Wistron ' Chelsea DJ2 MV '
- Manufacturer: Wistron
- SKU: 05159
- Unit: pcs
- Size: 1.69Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptop Dell Inspiron N5030 (UMA)
Project: Wistron ' Chelsea DJ2 MV '

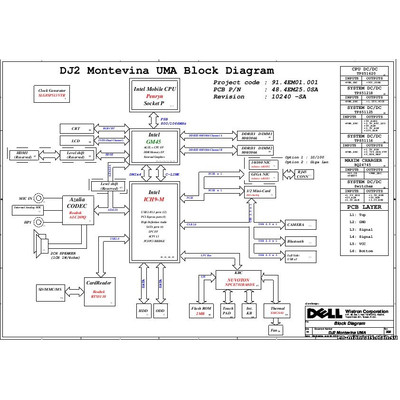

Schematic diagrams for motherboard marked DJ2 MV MB 10240
Format: PDF
Total pages: 88
+ BoardView
Format: BRD
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
