Toshiba Satellite L630 L730 L735
SKU: 06121
Schematic diagrams for Laptops Toshiba Satellite L630 / L730 / L735 Project: Quanta BU4
- Manufacturer: Quanta
- CPU: Intel Arrandale
- GPU: UMA
- RAM: DDR3
- SKU: 06121
- Unit: pcs
- Size: 1.00Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

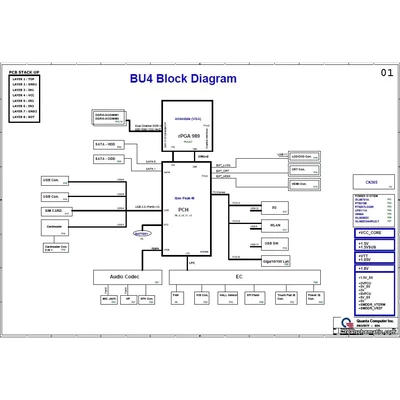

Schematic diagrams for Laptops Toshiba Satellite L630 / Toshiba Satellite L730 / Toshiba Satellite L735
Project: Quanta BU4
Schematic diagrams for PCB with marking DA0BU4MB8E0 and similar
Format: PDF
Total pages: 33

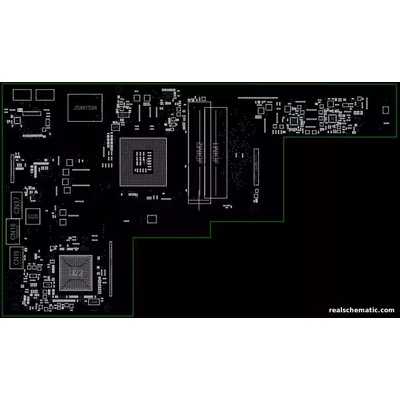

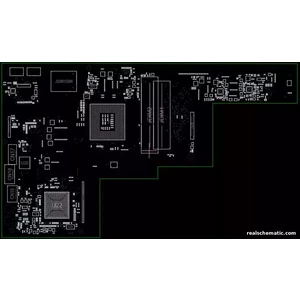

+ BoardView Rev: E
+ BoardView for Sub-board
The program for viewing is attached.
