Schematic diagrams for Laptops HP Mini 110 / Mini 210 Project: Foxconn ' Edwards '
- Manufacturer: Foxconn
- CPU: Intel Pineview
- VGA: UMA
- RAM: DDR3
- SKU: 08223
- Unit: pcs
- Size: 1.04Mb
- Availability: In stock
- Tags:
4.50eur
Schematic diagrams for Laptops HP Mini 110 / HP Mini 210
Project: Foxconn ' Edwards '

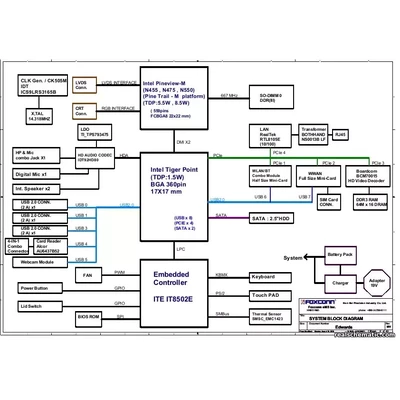

Schematic diagrams for motherboard marked EDWARDS_I_HPC_XS
Format: PDF
Total pages: 40

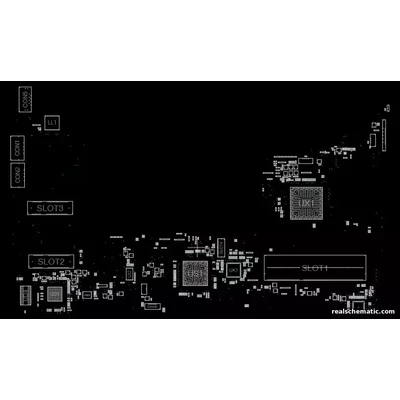

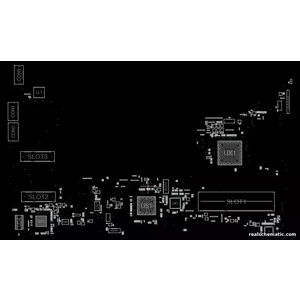

+ BoardView Rev: EDWARDS_I_HPC_XS MP_MB_V2
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
