Sony Vaio VGN-AR series PCB: MBX-188

5.0/1
Compare
SKU: 10060
Schematic diagrams for Laptops Sony Vaio VGN-AR series Project: Foxconn M612
  • Manufacturer: Foxconn
  • CPU: Intel Merom
  • GPU: Nvidia NB8M / NB8P
  • RAM: DDR2
  • SKU: 10060
  • Unit: pcs
  • Size: 1.27Mb
  • Availability: In stock
  • Tags: VGN-AR, VAIO, M612, MBX-188, Foxconn, Sony
2.50eur

Schematic diagrams for Laptops Sony Vaio VGN-AR series

Project: Foxconn M612

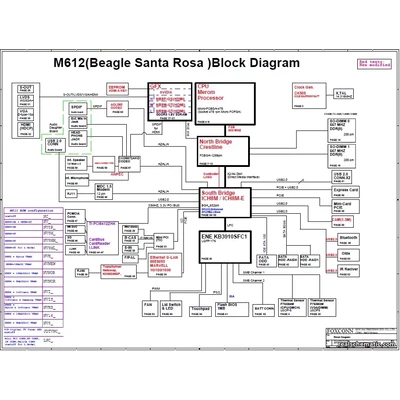

Schematic diagrams for PCB marked MBX-188 M612-MP2 Main Board

Format: PDF

Total pages: 77
