Schematic diagrams for All-in-One PCs HP Pavilion MS200 series Project: Quanta ZN1
- Manufacturer: Quanta
- SKU: 08234
- Unit: pcs
- Size: 1.66Mb
- Availability: In stock
- Tags:
4.50eur

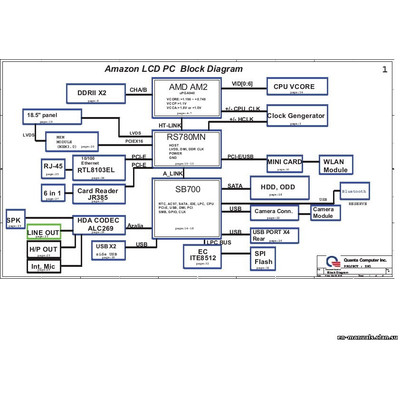

Schematic diagrams for All-in-One PCs HP Pavilion MS200 series / Pavilion MS215 series / Pavilion MS218 series / Pavilion MS225 series / Pavilion MS235 series
Project: Quanta ZN1
Schematic diagrams for PCB with marking DA0ZN1MB6C0 and similar
Format: PDF
Total pages: 41

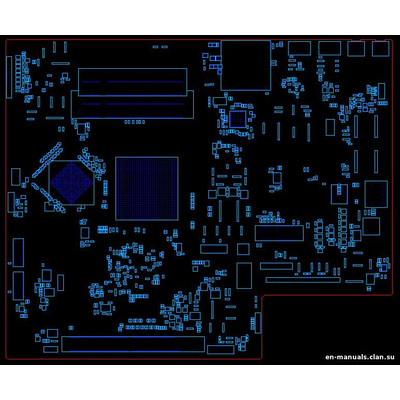

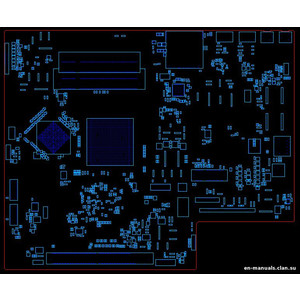

+ BoardView
The program for viewing is attached.
