Schematic diagrams for Laptops Dell Inspiron 5520, Inspiron 7520 & Vostro 3560 Project: LA-8241P
- Manufacturer: Compal
- SKU: 05176
- Unit: pcs
- Size: 7.22Mb
- Availability: In stock
- Tags:
4.50eur

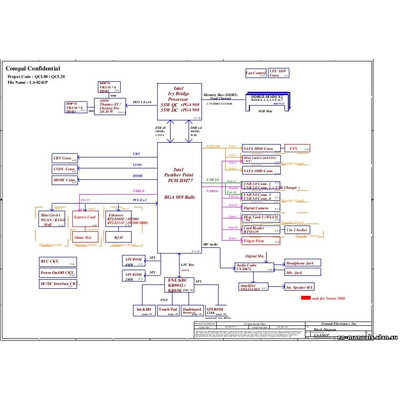

Schematic diagrams for Laptops Dell Inspiron 5520 / Dell Inspiron 7520 & Dell Vostro 3560
Project: Compal LA-8241P Rev: 1.0 (A00)
Schematic diagrams for PCB marked QCL00 LA-8241P
Format: PDF
Total pages: 56

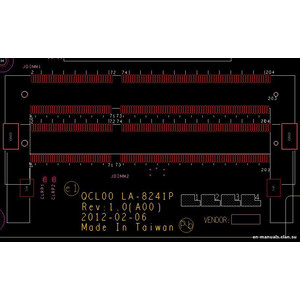

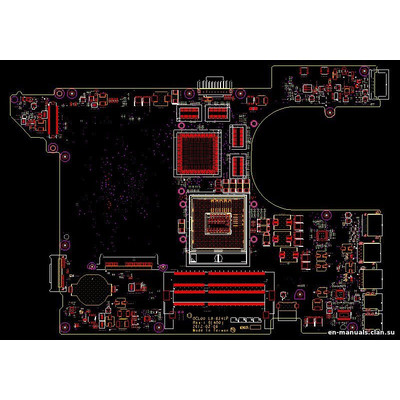

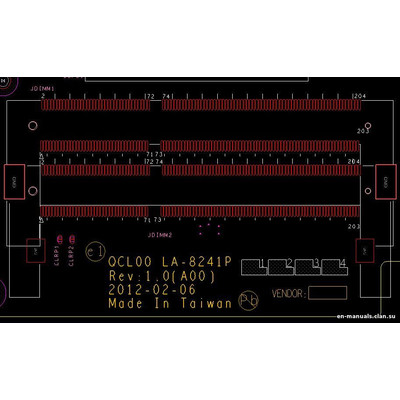

+ BoardView Rev: 1.0 (A00)
The program for viewing is attached.
