Schematic diagrams for Laptop Apple MacBook Pro A1260 Project: M87
- Manufacturer: Apple
- CPU: Intel Penryn
- GPU: Nvidia G84
- RAM: DDR2
- SKU: 17016
- Unit: pcs
- Size: 1.90Mb
- Availability: In stock
- Tags:
4.50eur
3.50eur
Schematic diagrams for Laptop Apple MacBook Pro A1260
Project: M87

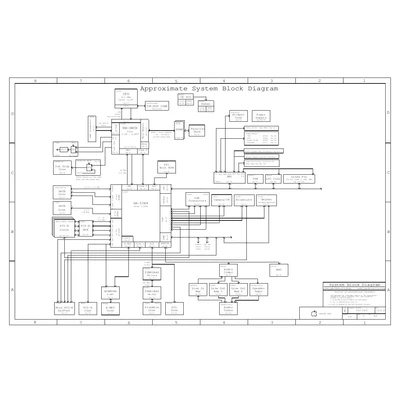

Schematic diagrams for motherboard marked 820-2249-A
Format: PDF
Total pages: 119
+ Sub-Boards schematic diagrams: 820-2273, 820-2282, 820-2306, 051-7482 (Led Driver Board)

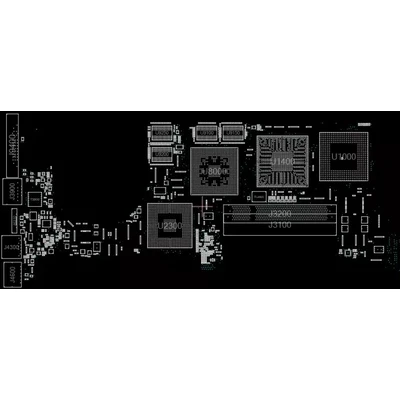

+ BoardView
Format: BRD
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
