Samsung NP305V5A NP305V5Z
SKU: 07049
Schematic diagrams for Laptops Samsung NP305V5A / NP305V5Z Project: Petronas-D-15E
- Manufacturer: Samsung
- CPU: AMD Socket FS1
- GPU: ATI
- RAM: DDR3
- SKU: 07049
- Unit: pcs
- Size: 1.07Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptops Samsung NP305V5A / Samsung NP305V5Z
Project: Petronas-D-15E

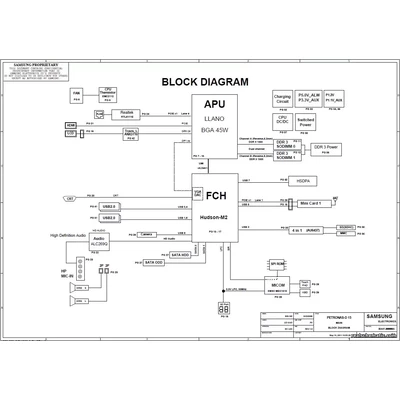

Schematic diagrams for PCB marked BA41-01681A
Format: PDF
Total pages: 54

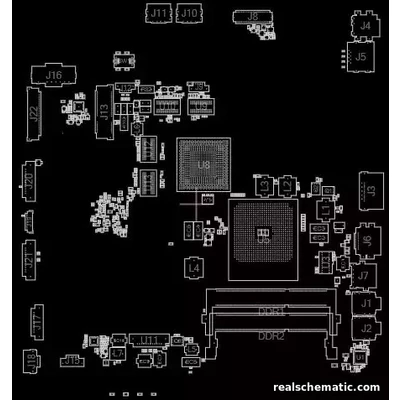

+ BoardView
Format: CAD full ( shows the values / labeling of the components )
The program for viewing is attached.
