Toshiba Satellite U500, Satellite M900

Rating: 5.0/1
3.75eur

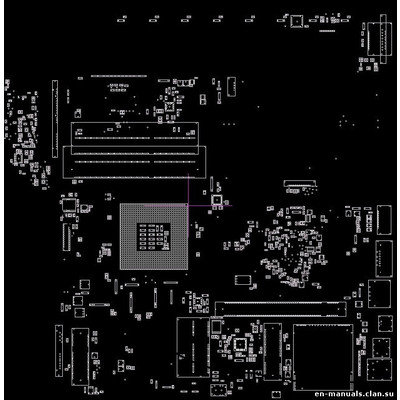

Toshiba Satellite U500 / Satellite M900 BoardView

Project: Pegatron ' A3 CLP DSC '

BoardView for PCB marked A3 CLP DSC MAIN BOARD

Two sides.

Shows the positional designation, relations between the contacts and other details.

The program for viewing is attached.

Added by: Dr-laptop, Saturday, 26.10.2013
