Schematic diagrams for Laptop Dell Inspiron 1750 Project: Wistron DR2 512M
- Manufacturer: Wistron
- SKU: 05182
- Unit: pcs
- Size: 2.21Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

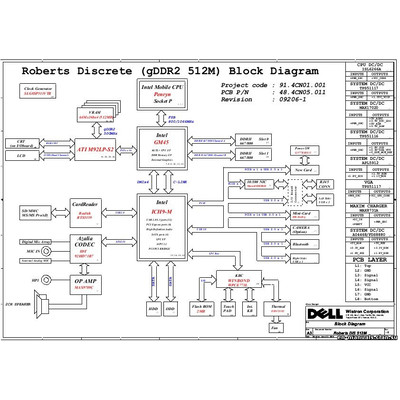

Schematic diagrams for Laptop Dell Inspiron 1750
Project: Wistron DR2 512M
Schematic diagrams for PCB marked:
48.4CN05.011
09206-1
DR2 DIS 512M MB
Format: PDF
Total pages: 61

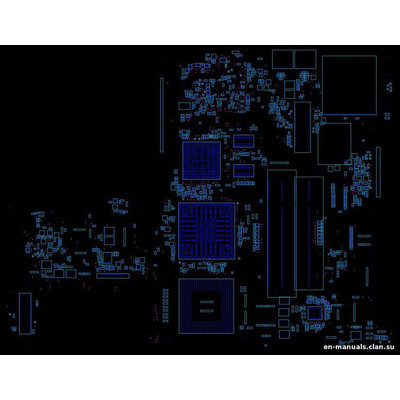

+ BoardView
The program for viewing is attached.
