Schematic diagrams for Laptops Lenovo IdeaPad P400, P500, Z400, Z500 Project: LA-9061P
- Manufacturer: Compal
- CPU: Intel Socket 988B
- VGA: Nvidia N13P / UMA
- RAM: DDR3
- SKU: 12153
- Unit: pcs
- Size: 1.15Mb
- Availability: In stock
- Tags:
4.50eur

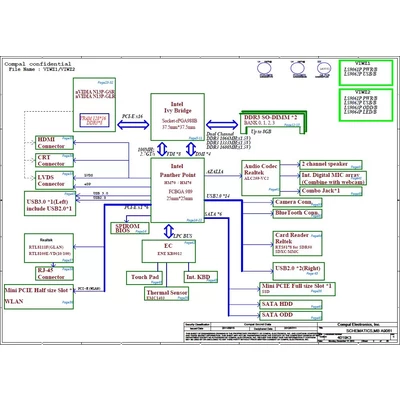

Schematic diagrams for Laptops Lenovo IdeaPad P400 / P500 / Z400 / Z500 series
Project: Compal LA-9061P Rev: 2A
Schematic diagrams for motherboard marked VIWZ1_Z2 LA-9061P Rev:2A
Format: PDF
Total pages: 63

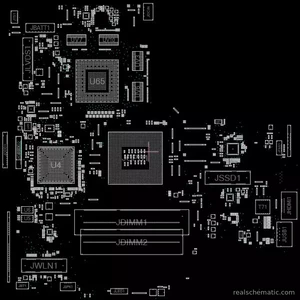

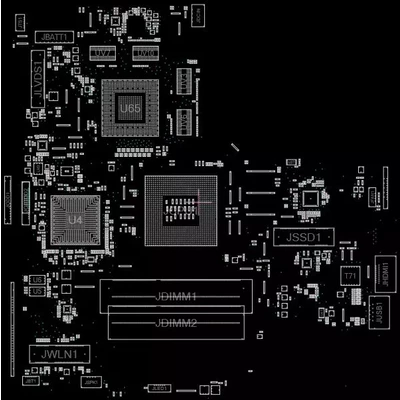

+ BoardView Rev: 2A
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
Similar products
Lenovo IdeaPad G470 G570
Schematic diagrams for Laptops Lenovo IdeaPad G470 / G570 Project: Compal LA-6751P / LA-6753P
4.50eur
- Availability:In stock
Lenovo IdeaPad B570e V570 Z570 series PCB: LZ57
Schematic diagrams for Laptops Lenovo IdeaPad B570 / V570 / Z570 Project: Wistron LZ57
4.50eur
- Availability:In stock
