Acer Veriton Z280G / eMachines EZ1600, EZ1601

5.0/1
Compare
SKU: 00351

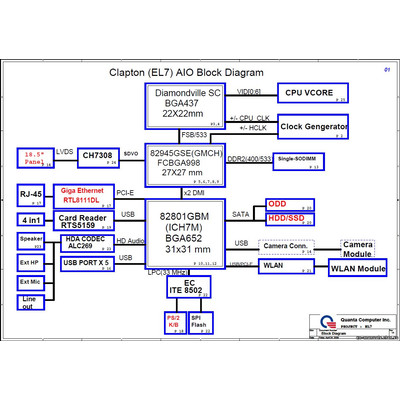

Schematic diagrams for All-in-One PCs Acer Veriton Z280G / eMachines EZ1600, EZ1601 Project: Quanta EL7
4.50eur
3.75eur

Schematic diagrams for All-in-One PCs Acer Veriton Z280G / eMachines EZ1600 / eMachines EZ1601

Project: Quanta EL7

Schematic diagrams for PCB with marking DA0EL7MB6C0 and similar

Format: PDF

Total pages: 34

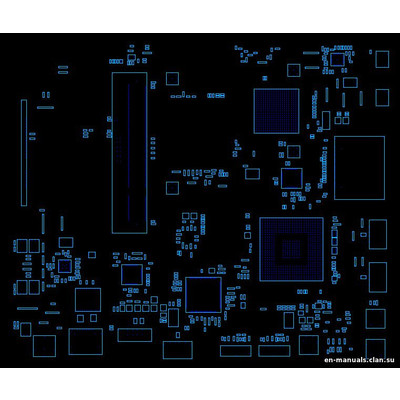

+ BoardView

The program for viewing is attached.
