Dell Inspiron N5050
SKU: 05189

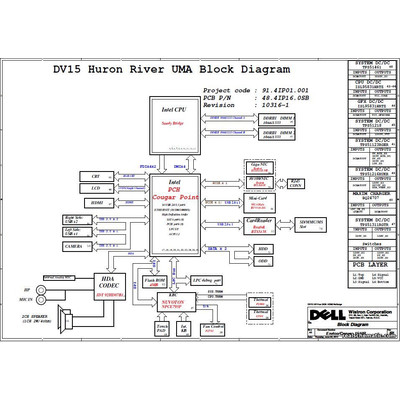

Schematic diagrams for Laptop Dell Inspiron N5050 Project: Wistron ' DV15 HR '
- Manufacturer: Wistron
- SKU: 05189
- Unit: pcs
- Size: 7.88Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptop Dell Inspiron N5050
Project: Wistron ' DV15 HR '
Schematic diagrams for PCB marked 10316-1 DV15 HR
Format: PDF
Total pages: 104

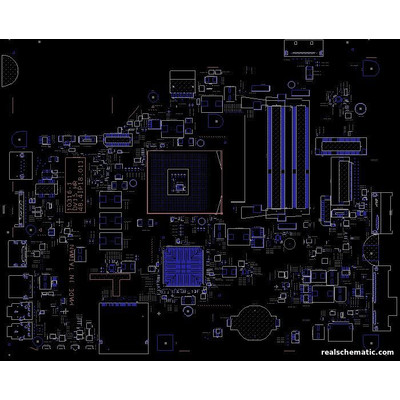

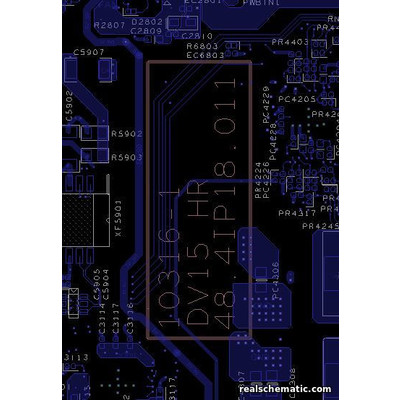

+ BoardView Rev: A00 (multilayer, with full factory markings of names and parameters of electronic components)
The program for viewing is attached.
