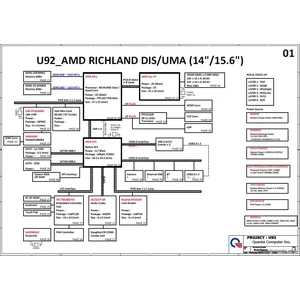

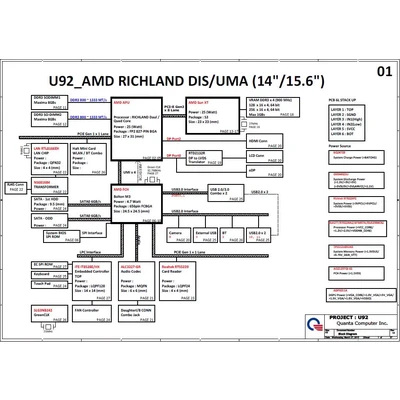

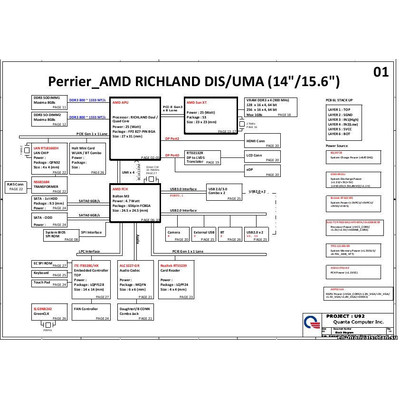

Schematic diagrams for Laptops HP Pavilion 14-n, Pavilion 15-n series Project: Quanta U92
- Manufacturer: Quanta
- CPU: AMD Richland / Trinity
- GPU: AMD Sun / UMA
- RAM: DDR3
- SKU: 08244
- Unit: pcs
- Size: 1.50Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptops HP Pavilion 14-n series / HP Pavilion 15-n series
Project: Quanta U92
Schematic diagrams for motherboards marked DA0U92MB6D0 REV:D, DA0U92MB6D1 REV:D
Format: PDF
Total pages: 37

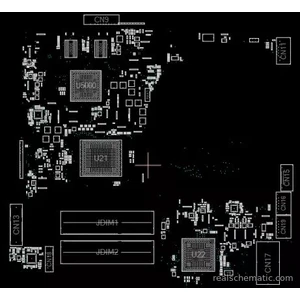

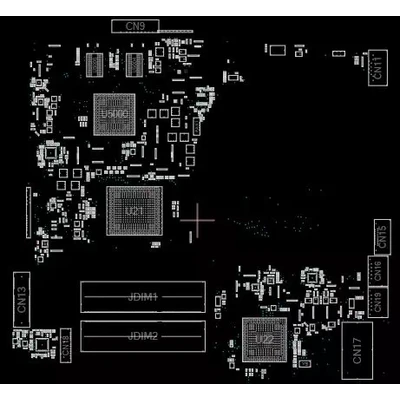

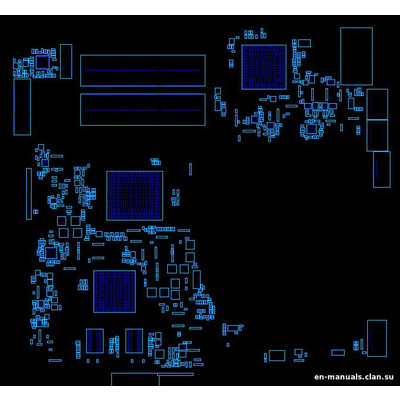

+ BoardView Rev: D
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
