HP Pavilion 15-e 17-e series PCB: R75

Name: HP Pavilion 15-e 17-e series PCB: R75
Brand: Quanta
SKU: 08246
Price: 4.50 EUR
Availability: InStock
Rating: 5.0 (2 reviews)

Rating: 5.0/2

4.50eur

Manufacturer: Quanta
SKU: 08246
Unit: pcs
Size: 2.02Mb
Availability: In Stock

17-e, quanta, 15-e, HP, Pavilion

Description
Images

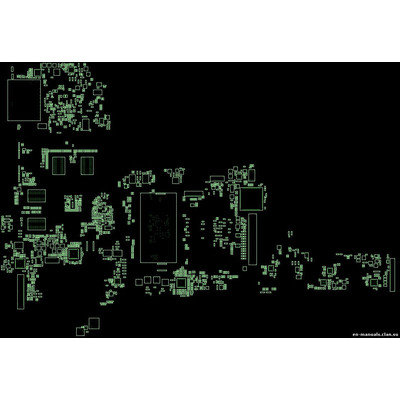

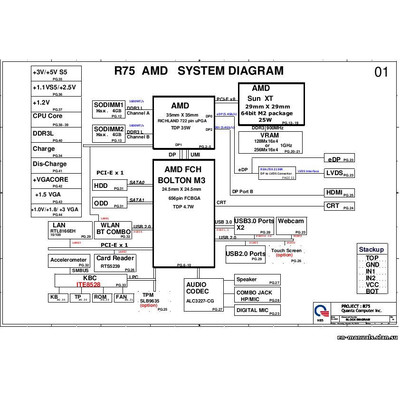

Schematic diagrams for Laptops HP Pavilion 15-e series / Pavilion 17-e series

Project: Quanta R75

Schematic diagrams for PCB with markings DA0R75MB6C0, DA0R75MB6C1 and similar

Format: PDF

Total pages: 43

+ BoardView

The program for viewing is attached.

Added by: Dr-laptop, Friday, 16.05.2014
