Schematic diagrams for Laptops HP 255 G1, CQ58, Pavilion g6, Pavilion 2000 series Project: Inventec ' KF14BR '
- Manufacturer: Inventec
- SKU: 08253
- Unit: pcs
- Size: 815.4Kb
- Availability: In stock
- Tags:
4.50eur
Schematic diagrams for Laptops HP 255 G1 / HP Pavilion g6 / HP Pavilion 2000 series / Compaq Presario CQ58
Project: Inventec ' KF14BR '

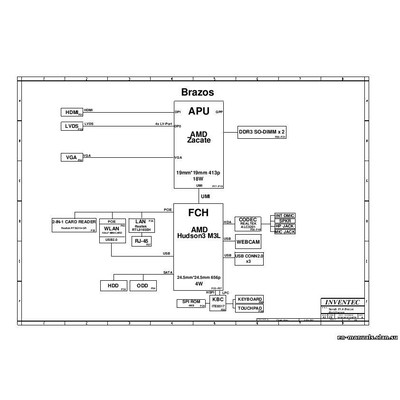

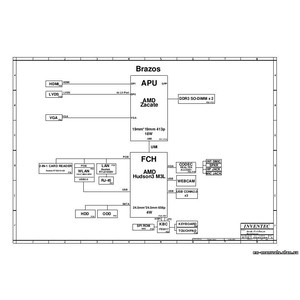

Schematic diagrams for PCB marked 6050A2498701
Format: PDF
Total pages: 45

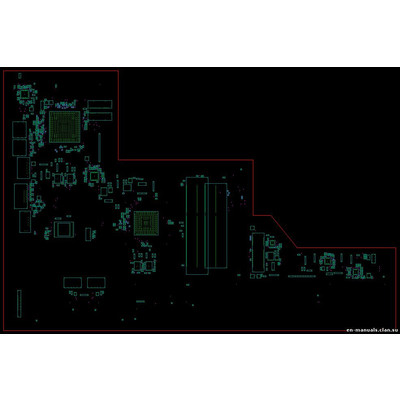

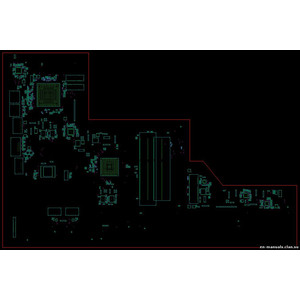

+ BoardView
The program for viewing is attached.
