Schematic diagrams for Laptops eMachines D400, D440, D640, D640G Project: JE40-DN
- Manufacturer: Wistron
- SKU: 00226
- Unit: pcs
- Size: 3.77Mb
- Availability: In stock
- Tags:
4.50eur

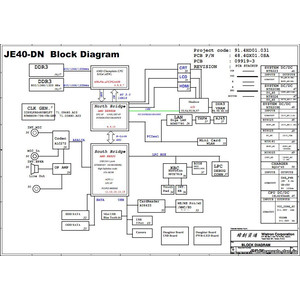

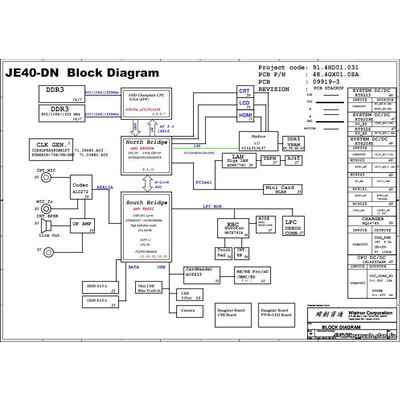

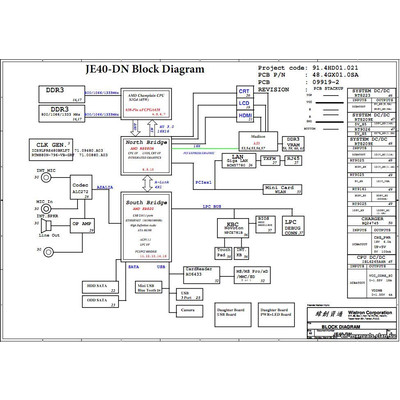

Schematic diagrams for Laptops eMachines D400 / D440 / D640 / D640G series
Project: Wistron ' JE40-DN '
Schematic diagrams for PCB with markings JE40-DN MB 09919-2 48.4HD01.021, JE40-DN MB 09919-3 48.4HD01.031
Format: PDF
Total pages: 2*63 ( two revisions )

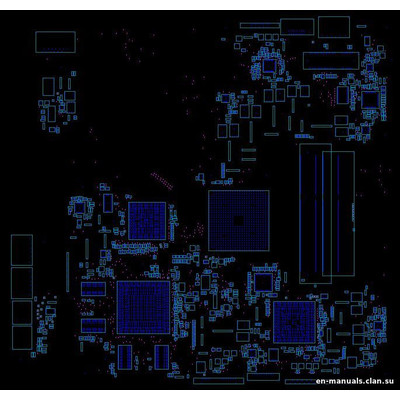

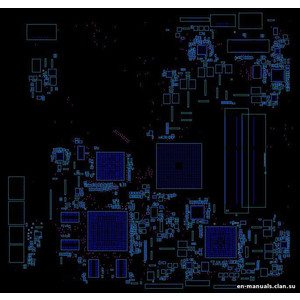

+ BoardView
The program for viewing is attached.
