Schematic diagrams for Laptops HP Pavilion 15-b, Pavilion 15s-eq Project: Quanta U56
- Manufacturer: Quanta
- SKU: 08260
- Unit: pcs
- Size: 1.93Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

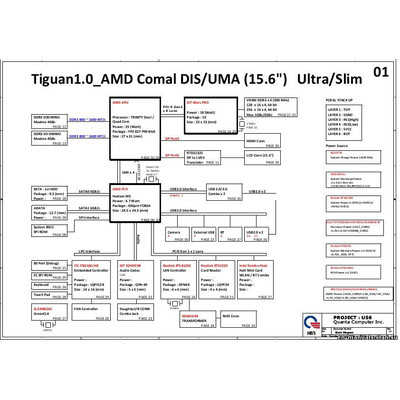

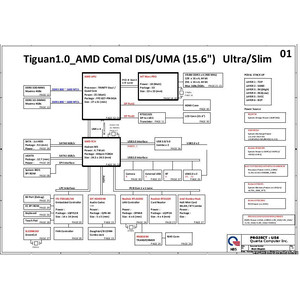

Schematic diagrams for Laptops HP Pavilion 15-b, HP Pavilion 15s-eq series
Project: Quanta U56
Schematic diagrams for PCB with marking DA0U56MB6E0 and similar
Format: PDF
Total pages: 39
+ BoardView
The program for viewing is attached.
