Acer Aspire 4251, Aspire 4551, Aspire 4551G
SKU: 00227
Schematic diagrams for Laptops Acer Aspire 4251 / 4551 / 4551G Project: Wistron ' JE40-DN '
- Manufacturer: Wistron
- SKU: 00227
- Unit: pcs
- Size: 3.77Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

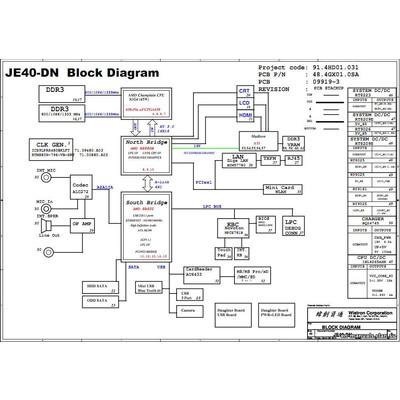

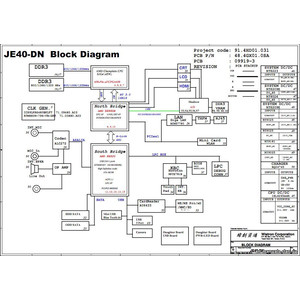

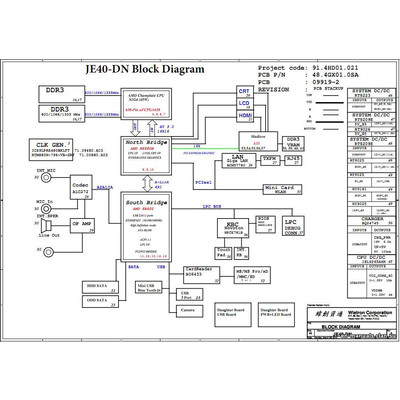

Schematic diagrams for Laptops Acer Aspire 4251 / Aspire 4551 / Aspire 4551G
Project: Wistron ' JE40-DN '
Schematic diagrams for PCB with markings JE40-DN MB 09919-2 48.4HD01.021, JE40-DN MB 09919-3 48.4HD01.031
Format: PDF
Total pages: 63 + 63 ( two revisions )

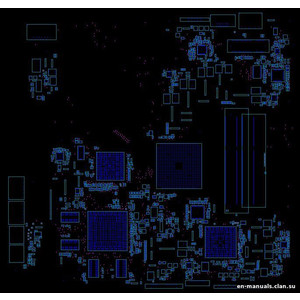

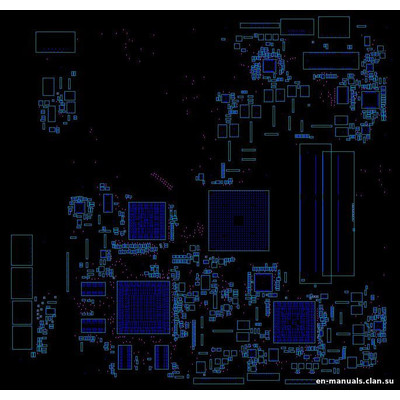

+ BoardView
The program for viewing is attached.
