Samsung NP300E4C / Samsung NP305V4A

Name: Samsung NP300E4C / Samsung NP305V4A
Brand: Samsung
SKU: 07059
Price: 3.75 EUR
Availability: InStock
Rating: 5.0 (2 reviews)

5.0/2

SKU: 07059

Schematic diagrams for Laptops Samsung NP300E4C / NP305V4A Project: Petronas-D-14E

Manufacturer: Samsung
SKU: 07059
Unit: pcs
Size: b
Availability: In stock
Tags: NP305V4A, Samsung, NP300E4C, Petronas-D-14E, BA41-01680A, boardview, PDF

4.50eur

3.75eur

Description
Images

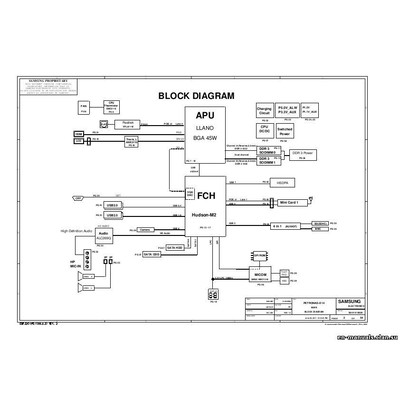

Schematic diagrams for Laptops Samsung NP300E4C / Samsung NP305V4A

Project: Petronas-D-14E

Schematic diagrams for PCB marked BA41-01680A

Format: PDF

Total pages: 54

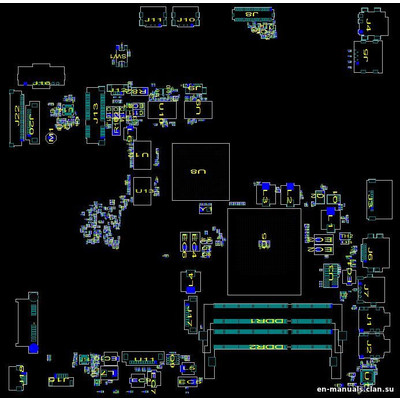

+ BoardView

The program for viewing is attached.
