Lenovo IdeaPad G505 (UMA)
Schematic diagrams for Laptop Lenovo IdeaPad G505 Project: Compal LA-9912P
- Manufacturer: Compal
- CPU: AMD Kabini
- VGA: UMA
- RAM: DDR3
- SKU: 12171
- Unit: pcs
- Size: 1.19Mb
- Availability: In stock
- Tags:
4.50eur

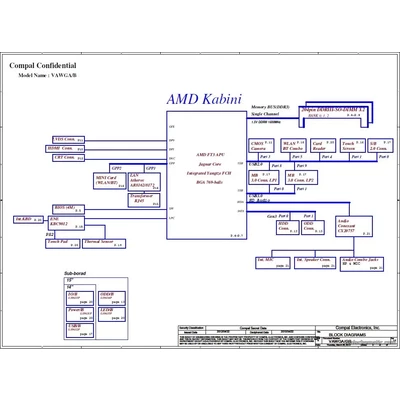

Schematic diagrams for Laptop Lenovo IdeaPad G505 (UMA)
Project: Compal LA-9912P Rev: 1.0
Schematic diagrams for motherboard marked VAWGA/GB LA-9912P
Format: PDF
Total pages: 37

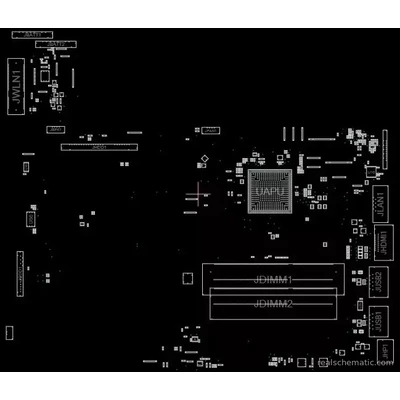

+ BoardView Rev: 1.0
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
