Lenovo IdeaPad S410, M30-70, S40-70
SKU: 12184
Schematic diagrams for Laptops Lenovo S410, M30-70, S40-70 Project: LA-A321P
- Manufacturer: Compal
- SKU: 12184
- Unit: pcs
- Size: 1.55Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

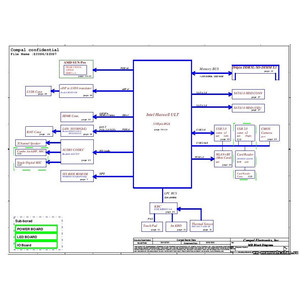

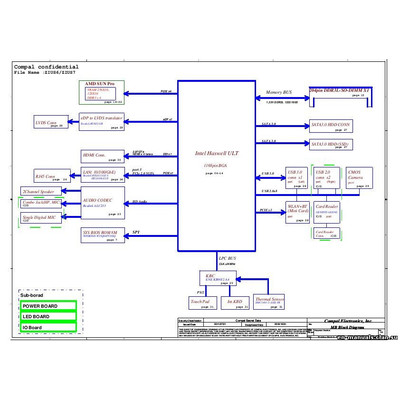

Schematic diagrams for Laptops Lenovo IdeaPad S410 / Lenovo M30-70 / Lenovo M40-70
Project: Compal LA-A321P
Schematic diagrams for PCB marked ZIUS6/S7 LA-A321P
Format: PDF
Total pages: 46

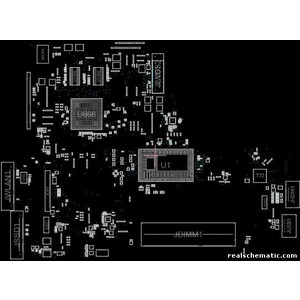

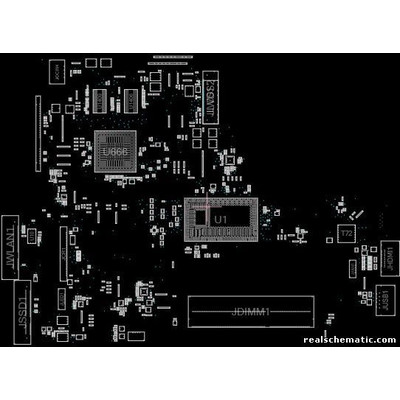

+ BoardView Rev: 1.0
The program for viewing is attached.
