MSI CX640 MS-16Y1 PCB: A15HC
SKU: 02566
BoardView for Laptops MSI CX640 / MSI MS-16Y1 series Project: Pegatron A15HC
- Manufacturer: Pegatron
- CPU: Intel Socket 988
- GPU: Nvidia N12P / UMA
- RAM: DDR3
- SKU: 02566
- Unit: pcs
- Size: 181.7Kb
- Availability: In stock
- Tags:
2.50eur
BoardView for Laptops MSI CX640 / MSI MS-16Y1 series
Project: Pegatron A15HC

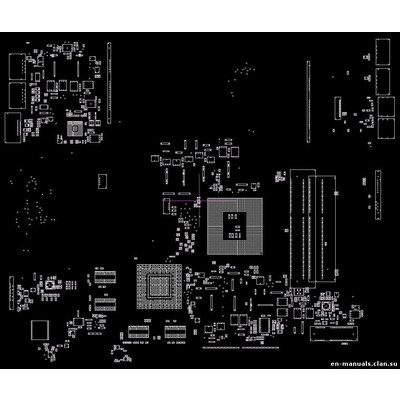

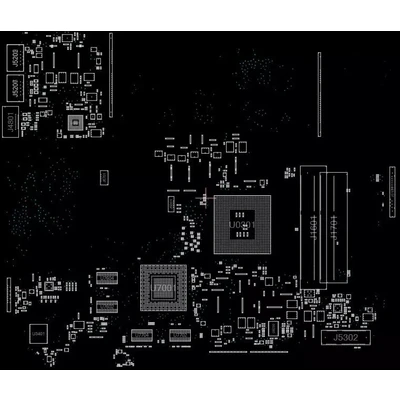

BoardView for motherboard marked A15HC MAIN BOARD
Two sides.
Shows positional designations, electrical circuits between components, and other details.
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
