Schematic diagrams for Laptops Samsung NP-RC410, NP-RC510, NP-RC710 Project: Jinmao-L
- Manufacturer: Samsung
- SKU: 07060
- Unit: pcs
- Size: 1.64Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

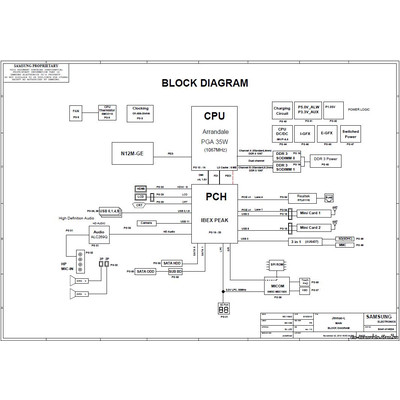

Schematic diagrams for Laptops Samsung NP-RC410 / NP-RC510 / NP-RC710
Project: Jinmao-L
Schematic diagrams for PCB with markings:
BA41-01432A
BA41-01433A
BA41-01434A
BA41-01435A
Format: PDF
Total pages: 52

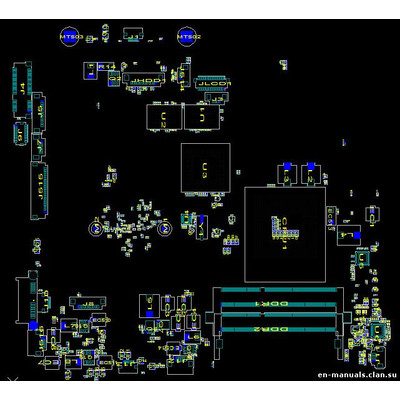

+ BoardView
The program for viewing is attached.
