Acer Aspire E5-531, E5-571, V3-572
SKU: 00354
Schematic diagrams for Laptops Acer Aspire E5-531, E5-571, V3-572 Project: LA-B161P
- Manufacturer: Compal
- SKU: 00354
- Unit: pcs
- Size: 1.79Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

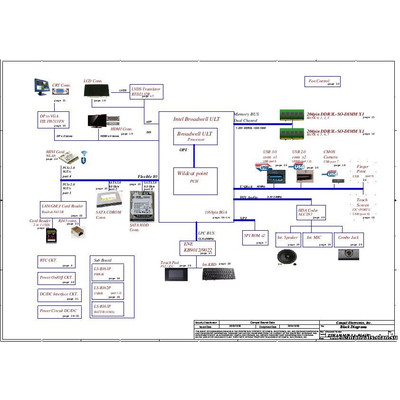

Schematic diagrams for Laptops Acer Aspire E5-531 / Acer Aspire E5-571 / Acer Aspire V3-572
Project: Compal LA-B161P Rev: 1.0
Schematic diagrams for PCB marked Z5WAH LA-B161P
Format: PDF
Total pages: 44
+ Sub-boards schematic diagrams

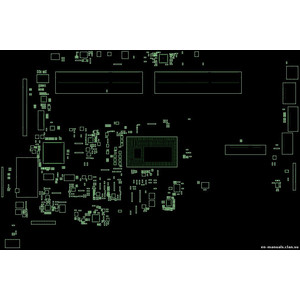

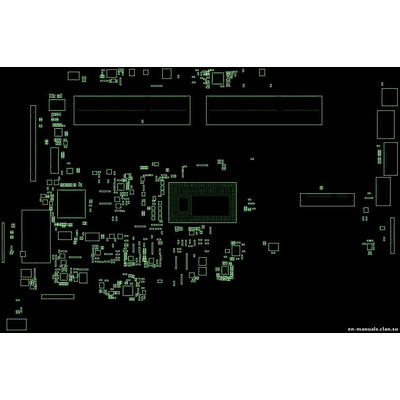

+ BoardView
The program for viewing is attached.
