Dell Latitude E6230
SKU: 05195
Schematic diagrams for Laptop Dell Latitude E6230 Project: Compal LA-7731P
- Manufacturer: Compal
- SKU: 05195
- Unit: pcs
- Size: 7.15Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

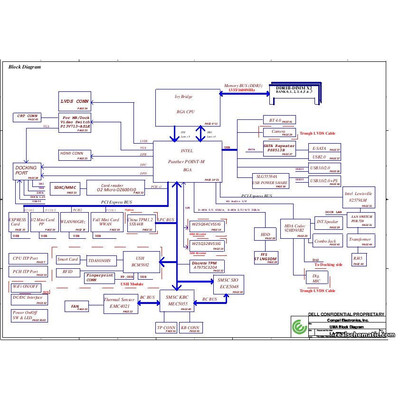

Schematic diagrams for Laptop Dell Latitude E6230
Project: Compal LA-7731P

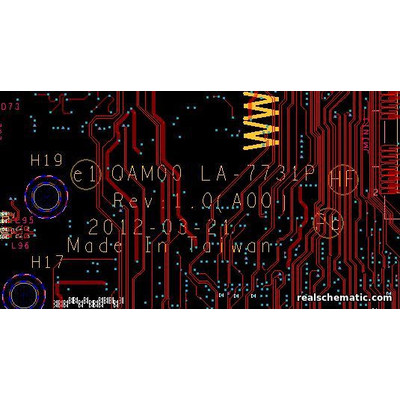

Schematic diagrams for PCB marked QAM00 LA-7731P
Format: PDF
Total pages: 59

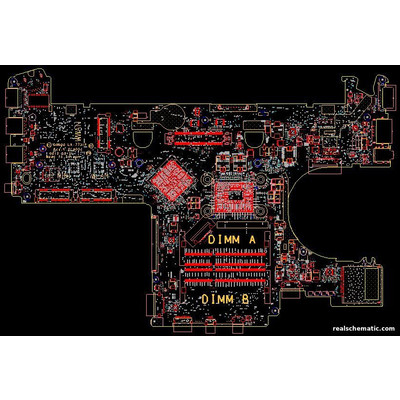

+ BoardView Rev: 1.0 (A00)
The program for viewing is attached.
