Dell Inspiron 5420, Inspiron 7420 & Vostro 3460
SKU: 05184
Schematic diagrams for Laptops Dell Inspiron 5420 / 7420 & Dell Vostro 3460 Project: Quanta R08/V08
- Manufacturer: Quanta
- SKU: 05184
- Unit: pcs
- Size: 6.88Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

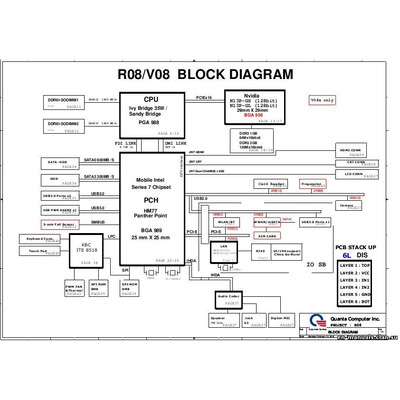

Schematic diagrams for Laptops Dell Inspiron 5420 / Dell Inspiron 7420 / Dell Vostro 3460
Project: Quanta R08 / V08
Schematic diagrams for PCB with markings DA0V08MB6D1, DA0R08MB6E2 and similar
Format: PDF
Total pages: 59
+ Sub-board schematic diagrams ' IO Board '

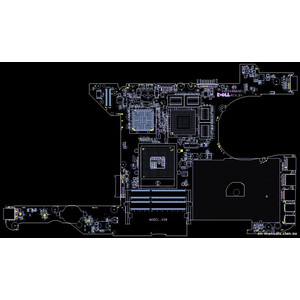

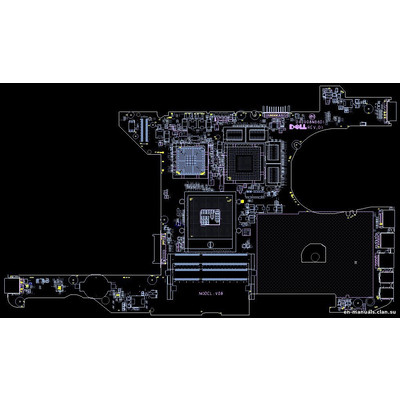

+ BoardView Rev: DA0V08MB6D1
The program for viewing is attached.
