ASUS K51AB

5.0/1
Compare
SKU: 03265

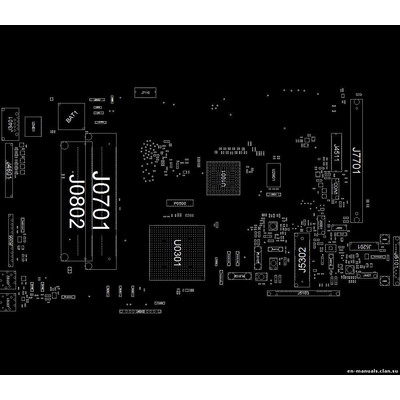

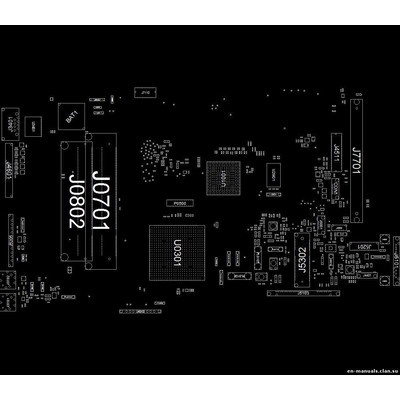

ASUS K51AB BoardView
  • Manufacturer: ASUS
  • SKU: 03265
  • Unit: pcs
  • Size: 1.21Mb
  • Availability: In stock
  • Tags: K51AB, boardview, ASUS
2.50eur

BoardView

Project: ASUS K51AB   Rev: 2.1, 2.3

BoardView for PCB marked K51AB MB MAIN BOARD

Two sides. Two versions.

Shows the positional designation, labeling and other details.

The program for viewing is attached.
