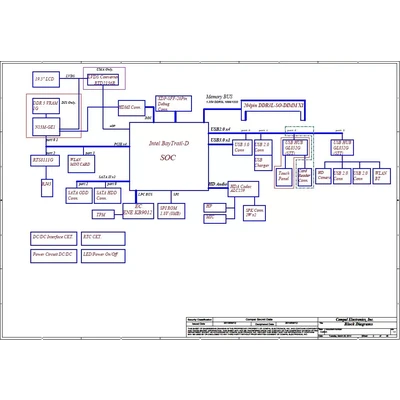

Schematic diagrams for All-in-One PC Lenovo IdeaCentre C260 Project: Compal LA-B001P
- Manufacturer: Compal
- CPU: Intel Bay Trail D
- VGA: Nvidia N13M / UMA
- RAM: DDR3L
- SKU: 12216
- Unit: pcs
- Size: 949.3Kb
- Availability: In stock
- Tags:
4.50eur
Schematic diagrams for All-in-One PC Lenovo IdeaCentre C260 AiO
Project: Compal LA-B001P Rev: 1.0
Schematic diagrams for motherboard marked ZAA00 LA-B001P
Format: PDF
Total pages: 48

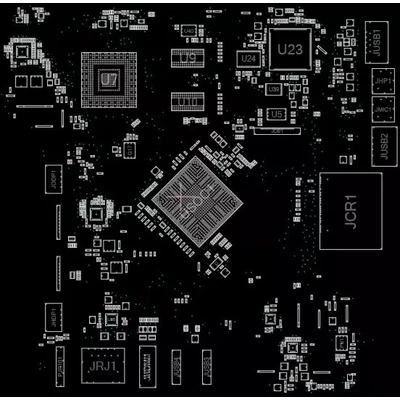

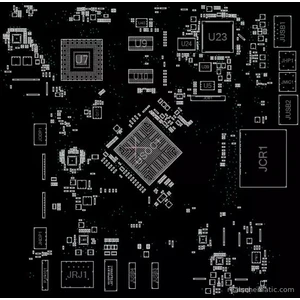

+ BoardView
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
