Acer Aspire E1-430G, E1-430P, E1-470G, E1-470P
SKU: 00372
Schematic diagrams for Laptops Acer Aspire E1-430G, E1-430P, E1-470G, E1-470P Project: Wistron ' EA40-CX '
- Manufacturer: Wistron
- SKU: 00372
- Unit: pcs
- Size: 2.28Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

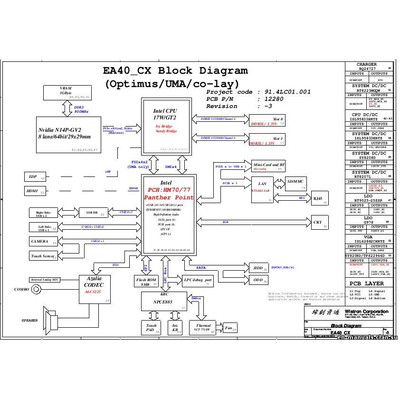

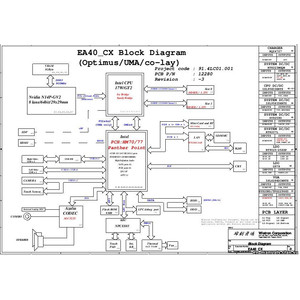

Schematic diagrams for Laptops Acer Aspire E1-430G / Acer Aspire E1-430P / Acer Aspire E1-470G / Acer Aspire E1-470P
Project: Wistron ' EA40-CX '
Schematic diagrams for PCB marked EA40-CX MB 12280-3
Format: PDF
Total pages: 103

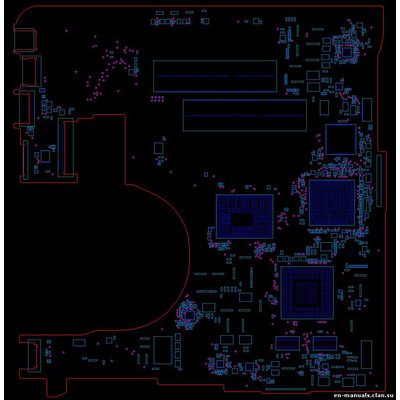

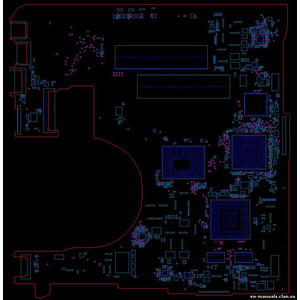

+ BoardView
The program for viewing is attached.
