Dell Latitude E7240 PCB: LA-9431P
SKU: 05237
Schematic diagrams for Laptop Dell Latitude E7240 Project: Compal LA-9431P
- Manufacturer: Compal
- CPU: Intel Haswell
- GPU: UMA
- RAM: DDR3L
- SKU: 05237
- Unit: pcs
- Size: 1.53Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptop Dell Latitude E7240
Project: Compal LA-9431P Rev: 1.0 (A00)
Schematic diagrams for motherboard marked VAZ50 LA-9431P
Format: PDF
Total pages: 59

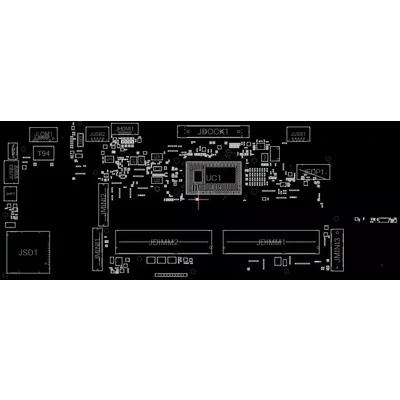

+ BoardView Rev: 1.0
Format: CAD
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
