Schematic diagrams for Laptops HP ENVY TouchSmart 15-j series Project: 15SBGTD
- Manufacturer: Inventec
- SKU: 08282
- Unit: pcs
- Size: 2.03Mb
- Availability: In stock
- Tags:
4.50eur
3.50eur

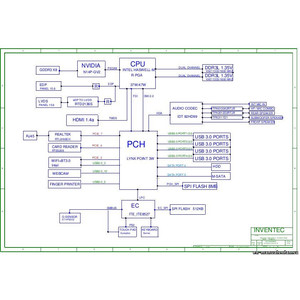

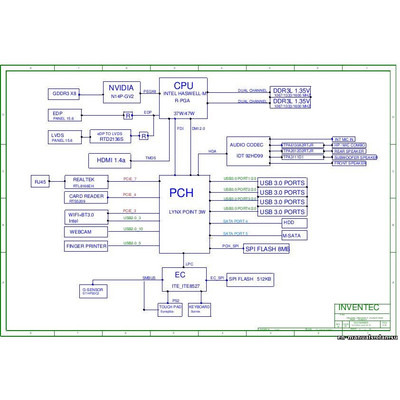

Schematic diagrams for Laptops HP ENVY TouchSmart 15-j series
Project: Inventec ' 15SBGTD '
Schematic diagrams for PCB marked 15SBGTD-6050A2547601-MB-A02
Format: PDF
Total pages: 70

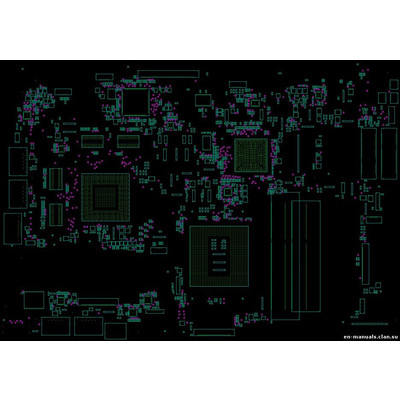

+ BoardView Rev: A02
The program for viewing is attached.
