Schematic diagrams for Laptop Dell Latitude E7250 Project: Compal LA-A971P
- Manufacturer: Compal
- SKU: 05243
- Unit: pcs
- Size: 2.43Mb
- Availability: In stock
- Tags:
4.50eur
Schematic diagrams for Laptop Dell Latitude E7250
Project: Compal LA-A971P

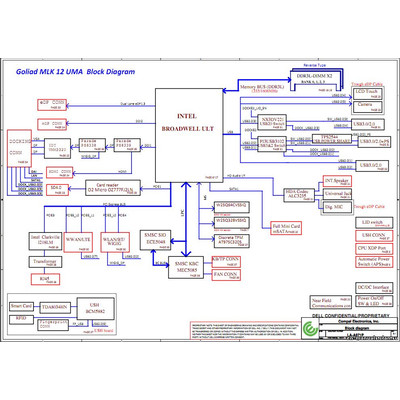

Schematic diagrams for PCB marked ZBZ00 LA-A971P
Format: PDF
Total pages: 52

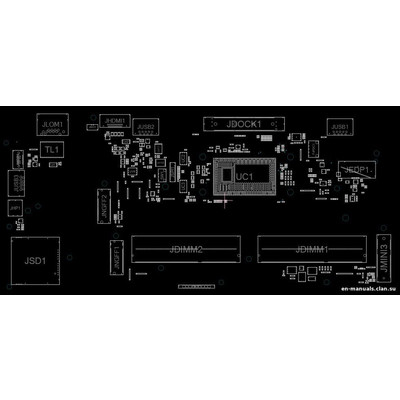

+ BoardView
The program for viewing is attached.
