Schematic diagrams for Laptop HP EliteBook Folio 9470m Project: Inventec ' Bandit '
- Manufacturer: Inventec
- CPU: Intel Ivy Bridge
- VGA: UMA
- RAM: DDR3
- SKU: 08294
- Unit: pcs
- Size: 1.60Mb
- Availability: In stock
- Tags:
4.50eur

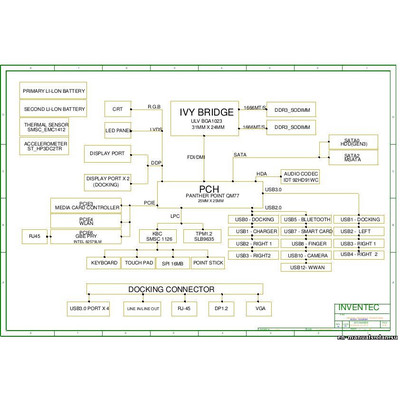

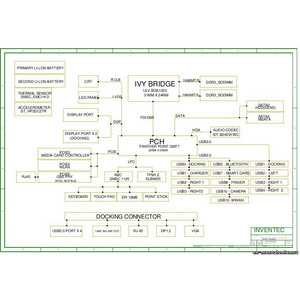

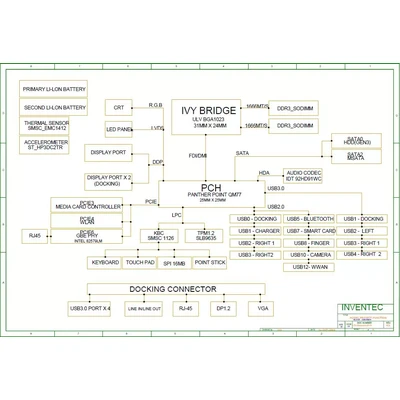

Schematic diagrams for Laptop HP EliteBook Folio 9470m
Project: Inventec ' Bandit '
Schematic diagrams for motherboard marked 6050A2514101-MB-A02
Format: PDF
+ Sub-boards schematic diagrams

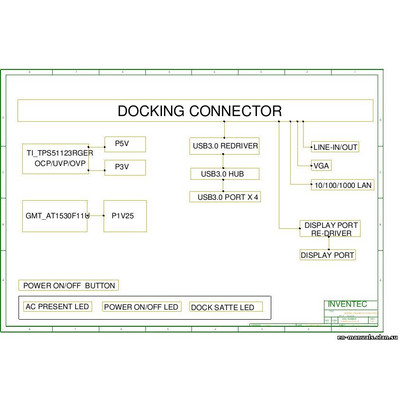

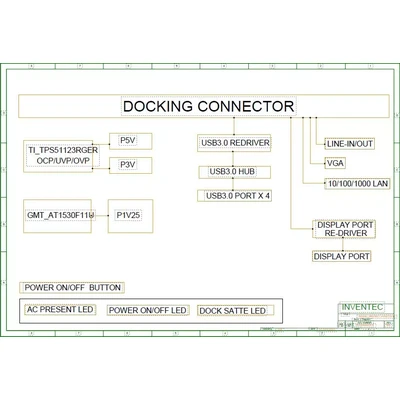

+ Dock Station schematic diagrams
Total pages: 96
