ASUS Pro Essential PU500C PU500CA

BoardView for Laptops ASUS Pro Essential PU500C / PU500CA

Project: ASUS P500CA   Rev: 2.0

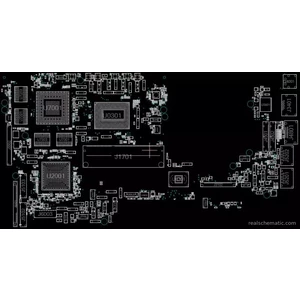

BoardView for motherboard marked P500CA MAIN BOARD

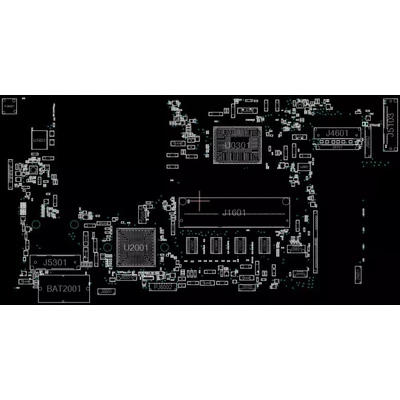

Two sides.

Format: FZ   ( shows the values / labeling of the components )

Shows positional designations, electrical circuits between components, and other details.

The program for viewing is attached.

+ Short Repair Guide

BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
