Schematic diagrams for Laptop Lenovo Yoga 2 Pro Project: NM-A074
- Manufacturer: Lenovo
- CPU: Intel Haswell
- VGA: UMA
- RAM: DDR3
- SKU: 12296
- Unit: pcs
- Size: 1.43Mb
- Availability: In stock
- Tags:
5.25eur
Schematic diagrams for Laptop Lenovo Yoga 2 Pro
Project: NM-A074 Rev: 1.0

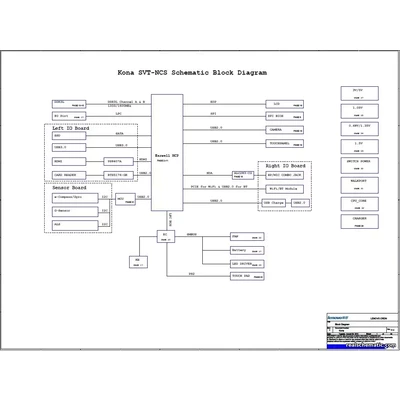

Schematic diagrams for motherboard with markings VIUU3 NM-A074 LENOVO KONA-SVT
Format: PDF
+ schematic diagrams and BoardView for all Sub-boards
Total pages: 47

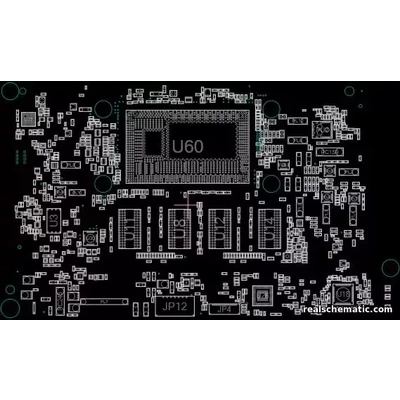

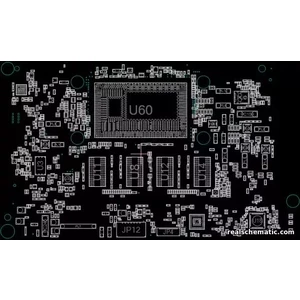

+ BoardView for Mainboard Rev: 1.0
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
