Lenovo ThinkPad X240 X240s X250 PCB: NM-A091
SKU: 12239
Schematic diagrams for Laptops Lenovo ThinkPad X240s / X250 Project: NM-A091
- Manufacturer: Lenovo
- CPU: Intel Haswell / Broadwell
- GPU: UMA
- RAM: DDR3L
- SKU: 12239
- Unit: pcs
- Size: 2.05Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptops Lenovo ThinkPad X240 / ThinkPad X240s / ThinkPad X250
Project: NM-A091 Rev: 1.0

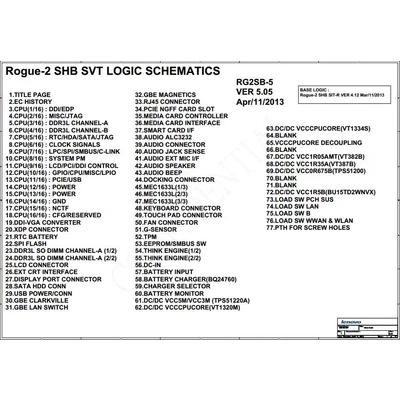

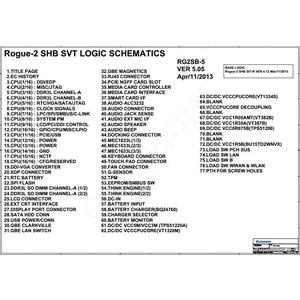

Schematic diagrams for motherboard marked VIUX1 NM-A091 RG2SB-5
Format: PDF
Total pages: 77

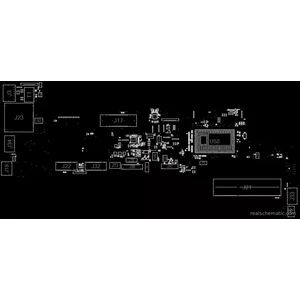

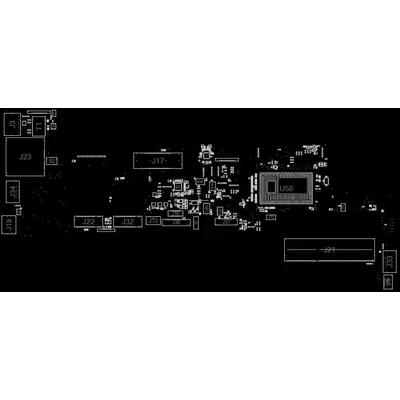

+ BoardView ( shows the values of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
