Dell OptiPlex 790 990 DT MT PCB: KA0121
SKU: 05297
Schematic diagrams for Desktop PCs Dell OptiPlex 790 / 990 Project: Dell Katsiki-MT/DT
- Manufacturer: Dell
- CPU: Intel Socket 1155
- GPU: PCI-E / UMA
- RAM: DDR3
- SKU: 05297
- Unit: pcs
- Size: 10.99Mb
- Availability: In stock
- Tags:
5.25eur
4.50eur

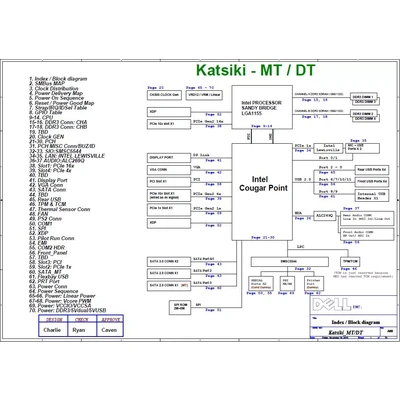

Schematic diagrams for Desktop PCs Dell OptiPlex 790 / Dell OptiPlex 990
Project: Dell ' Katsiki-MT/DT '
Schematic diagrams for motherboards marked KA0121 DP/N 0J3C2F, 06D7TR
Format: PDF
Total pages: 70

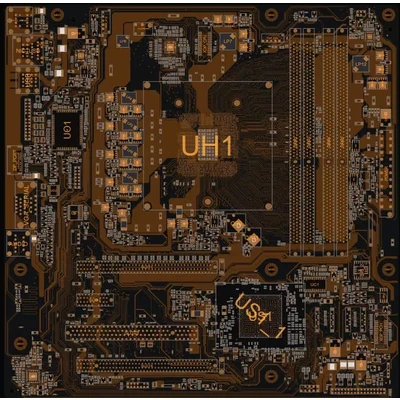

+ BoardView Rev: A00
Format: BRD ( multilayer, shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
