Acer Aspire A317-51G Extensa EX215-51G EX215-51K
SKU: 00550
Schematic diagrams for Laptops Acer Aspire A317-51G / Extensa EX215-51G, EX215-51K
- Manufacturer: Compal
- CPU: Intel Comet Lake
- GPU: Nvidia N17S
- RAM: DDR4
- SKU: 00550
- Unit: pcs
- Size: 3.46Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur
Schematic diagrams for Laptop Acer Aspire A317-51G / Acer Extensa EX215-51G / Acer Extensa EX215-51K
Project: Compal LA-H791P Rev: 2.0

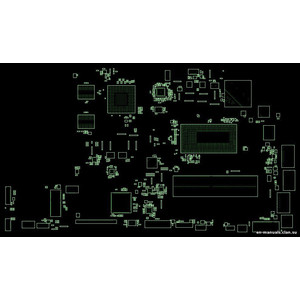

Schematic diagrams for motherboard marked EH7LW LA-H791P
Format: PDF
Total pages: 57

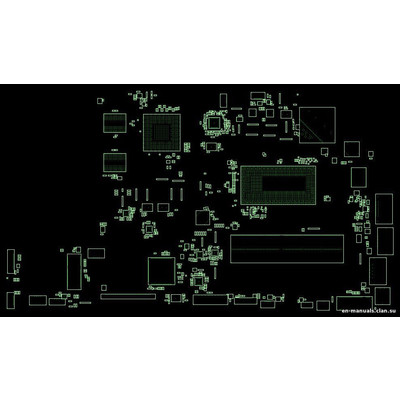

+ BoardView Rev: 2.0
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
