MSI Modern 14 B10MW B10R B10RASW B10RBSW MS-14D1
SKU: 02692
BoardView for Laptops MSI Modern 14 B10MW / B10R / B10RASW / B10RBSW & MSI MS-14D1 series
- Manufacturer: MSI
- CPU: Intel Comet Lake
- GPU: Nvidia N17S / UMA
- RAM: DDR4
- SKU: 02692
- Unit: pcs
- Size: 475.4Kb
- Availability: In stock
- Tags:
5.25eur
4.50eur
BoardView for Laptops MSI Modern 14 B10MW / B10R / B10RASW / B10RBSW & MSI MS-14D1 series
Project: MSI MS-14D11 Rev: 1.0
BoardView for motherboard marked MS-14D11 VER:1.0
Two sides
Shows electrical circuits between components and the names of these circuits ( Net names )
The program for viewing is attached.

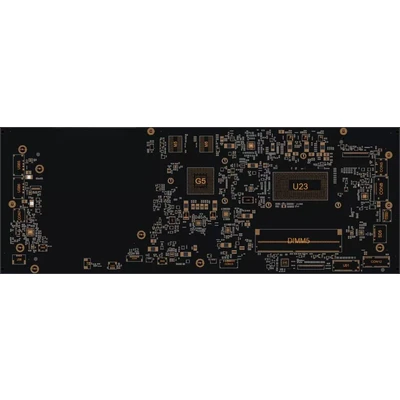

BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
