ASUS ZenBook Flip 15 Q536F Q536FD UX562F UX562FD

5.0/8
SKU: 03500
Schematic diagrams for Laptops ASUS ZenBook Flip 15 Q536F, Q536FD, UX562F, UX562FD
  • Manufacturer: ASUS
  • CPU: Intel Whiskey Lake
  • GPU: Nvidia N17P
  • RAM: DDR4
  • SKU: 03500
  • Unit: pcs
  • Size: 2.97Mb
  • Availability: In stock
  • Tags: UX562FD, UX562F, Q536F, ASUS, zenbook, Q536FD
5.25eur
4.50eur

Schematic diagrams for Laptops ASUS ZenBook Flip 15 Q536F / Q536FD / UX562F / UX562FD

Project: ASUS UX562FD   Rev: 2.0

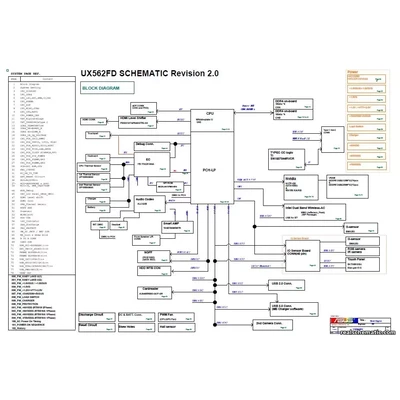

Schematic diagrams for motherboard marked UX562FD MAIN BOARD REV. 2.0

Format: PDF

Total pages: 74

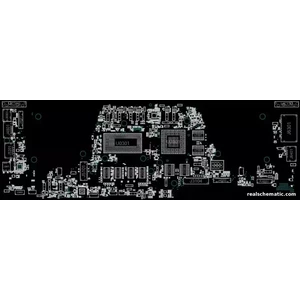

+ BoardView   Rev: 2.0

Format: FZ   ( shows the values / labeling of the components )

The program for viewing is attached.



BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
