Schematic diagrams for All-in-One PCs Lenovo IdeaCentre 520-22IKU / 520-24IKU Project: LA-E882P
- Manufacturer: Compal
- CPU: Intel Skylake / Kaby Lake
- VGA: AMD Topaz / UMA
- RAM: DDR4
- SKU: 12428
- Unit: pcs
- Size: 3.07Mb
- Availability: In stock
- Tags:
4.50eur
3.50eur

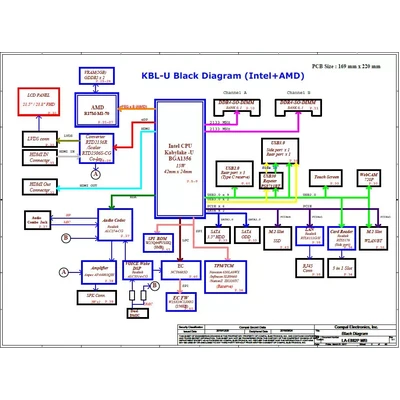

Schematic diagrams for All-in-One PCs Lenovo IdeaCentre 520-22IKU / Lenovo IdeaCentre 520-24IKU
Project: Compal LA-E882P Rev: 1.0
Schematic diagrams for motherboard marked DCA30 LA-E882P
Format: PDF
Total pages: 58

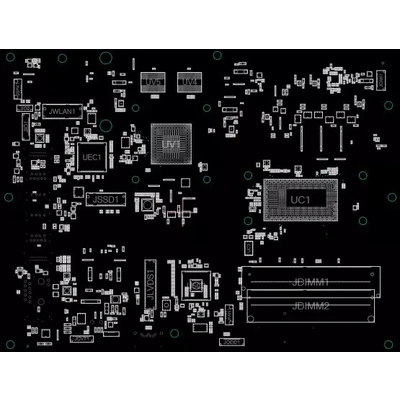

+ BoardView Rev: 1.0
Format: CAD
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
